E.P.I.C. 19″

Product Specification

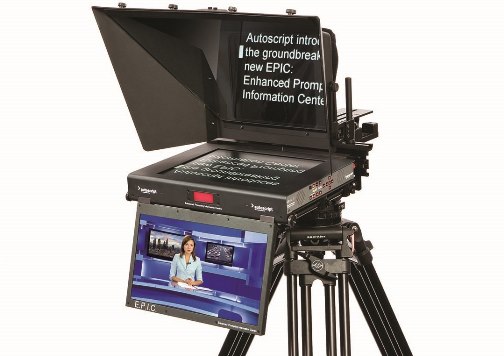

This large version of the world's first fully integrated prompting and on-air system brings major benefits:

  • Combines the brightest 19" LED prompting screen with an integrated 19" full HD-SDI on-air monitor
  • Solves the major operational problem of using on-air monitors – there’s no extra mounting bracket and therefore no restriction of camera tilt range
  • Weighs 3kg less than a system made of separate components (also saving 3kg of counter-balance) and uses 20% less power
  • Uses class-leading High Bright LED prompting screens with 1600 nits of brightness, a 1000:1 contrast ratio and a lifetime in excess of 70,000 hours
  • Simplified cable management – one power cable for the prompter and on-air monitor, while ClockPlus and TallyPlus are powered via 12V DC from prompter; the video signal loops through prompter

E.P.I.C. brings the power of information into the eyeline of the talent

  • 2 composite video and 2 HDSDI video inputs
  • Remote control of inputs
  • Unique, adjustable, picture in picture functionality allows all 4 inputs to be shown
  • Prompt Screen: Screen Size: 19" | Aspect ratio: 4:3 | Brightness: 1600 nits | Resolution: SXGA (1280x1024)
  • On-Air Monitor: Screen Size: 18.5" | Aspect ratio: 16:9 | Brightness: 400 nits | Resolution: Full HD (1920x1080)
  • Power: 12VDC input 66W | 100-240VAC 50-60Hz | input 75W
  • Weight: 8.75kg (19.3lb) |
  • Input: 2 x CVBS Composite Video | 2 x HD-SDI | Inputs assignable to either monitor
  • Any image can be inverted – up / down / left / right
  • LTC Input for EPIC ClockPlus-E.
  • Opto Sensor Input for Tally light
  • Output: Repeat Tally Output | 12VDC Accessory Power Outlet (3.5mm jack) | CVBS output for ClockPlusE VITC signal

    • IR: Infra Red remote control feature included as standard. Enables viewer to assign input controls to each screen and select image from remote control (included) remotely

    Other Features: Improved and simplified cable management | Built-in Tally Light | Mounting points for CuePlus, TallyPlus and new ClockPlusE Intelligent Cooling System with whisper-quiet fans | Power-saving auto-shutdown feature | Adjustable angle on Talent monitor for optimised viewing – securely locked with clamped rosettes.

EPIC Supported modes:

  • NTSC / 480i60 (525i60)
  • PAL / 576i50 (625i50)
  • 480p60 (525p60)
  • 576p50 (625p50)
  • (HDTV) 720p50
  • (HDTV) 720p60
  • (HDTV) 1080i50
  • (HDTV) 1080i60
  • (HDTV) 1080p25
  • (HDTV) 1080p25
