XBox-IP

Product Specification

The inner drive of Intelligent Prompting

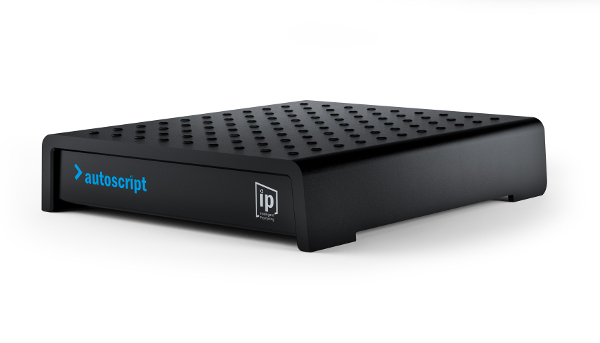

The XBox-IP is an extremely compact scroll engine. As an Intelligent Prompting device it networks via Ethernet to WinPlus-IP prompting software application, where users are able to monitor status, manage group updates and remote upgrades. Dual HD-SDI outputs support the distribution of the teleprompter video to traditional prompt monitors. In addition a Power over Ethernet output can be used to power an Intelligent Prompting scroll control – ideal for single controller setups. In a tough, portable casing with LED status indicator, the XBox-IP offers a modern solution for solo operators and users looking to retain HD/HD-SDI monitors.

  • Compact, portable unit
  • Dual HD-SDI output distributes script video to traditional prompt monitors
  • Power over Ethernet output for scroll control avoids the need for 3rd party equipment in single controller setups
  • At a glance network and status indicator
  • Managed remotely in WinPlus-IP and auto detected for simple installation
  • Not required for EVO-IP and EPIC-IP prompt monitors
Input Connection
  • 1 x 12V DC auxiliary input
  • 1 x RJ45 Ethernet
Power Consumption
  • Max 8W,
  • PoE Controller 11W
Output
  • 2 x HD-SDI
  • 1 x RJ45 Power over Ethernet
Weight
  • 600g / 1.35lb
Size
  • H 37mm x W 162mm x L 182mm
  • XBox-IP scroll engine.
  • Cables must be purchased separately
